ISO9001 2008 Certified Galvanized Steel Joist Hangers For Wooden Connectors

Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process.

joist hangers

Joist Hanger
Joist Hangers are designed for use where a strong, rigid joint is required between members meeting at 90?, e.g. truss/joist to beam, or rafter to bearer connection.
Material: DX51D-Z275/G300-Z275
Process: Stamping/Punching/Bending
Size: Can be customized
Surface: Galvanized sheet
Type: Wood connector
Quality: MOQ 2000pcs
Packaging: General standard export packing/Accept customized packaging

Joist Hangers
0.91mm G300 Z275 / DX51D-Z275 Galvanised Steel
Joist Hanger 47 x 90
Designed for use where gauged timber of 47mm width and up to 150mm deep.

Joist Hanger 47 x 120
Multi-use bracket suitable for gauged 47mm thick timber up to 200mm deep.

Joist Hanger 47 x 190
Used for gauged 47mm thick timber up to 300mm deep.

Joist Hanger 70 x 180
A special size joist hanger designed for gauged 69mm wide timbers.

Joist Hanger 95 x 165
For use on gauged 94mm wide timber or double joists/trusses.

Note: Joist Hangers 52mm wide also available for rough sawn timber.

All of the above Joist Hanger connections should be fixed using nails 30mm x 3.15mm diameter, or Type 17-12g x 35mm Hex Head Screws.

NOTE: Our factory provide custom processing services, can be produced according to customer's drawings.

This is Abram from Surealong Group Corporation (Beijing,China).
As a professional manufacturer of timber connectors,we had lot of experiences to export European market,North American market,New Zealand and Australia market. and the packages could be printed with your LOGO and company information.
Our products are certificated by CE and ISO9001:2008.

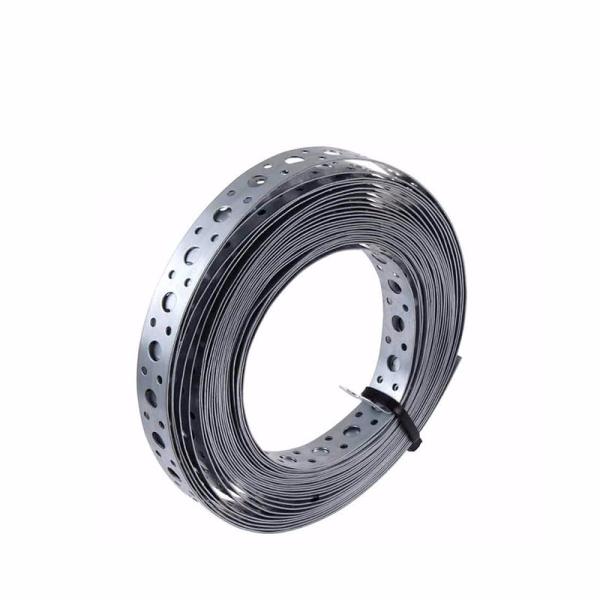

Main products include truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties

Main products:
Metal corner bracket,Angle bracket,Corner braces,corner connecting,Joist Hanger,Timber Connector,Timber Plate,Post Support and Joist Strap.

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

WHO WE ARE?

SUREALONG GROUP Corporation was formed in 2010. Currently it is one of professional manufacturers of wooden building components

in China. The company takes into account changing customer needs and constantly expands its range of production.

We care about every our customer and therefore strive to offer not only excellent value for money, but also quick and easy delivery in China.

The company is constantly expanding into new markets. Therefore, part of its production is exported to Australia,Denmark, Norway, Germany,

England, Poland, Latvia, Estonia, Belarus and other European countries,and also other country.

MANUFACTURING PROCESS.

In the way of cold forming connectors are made only from certified steel, which is coated with a zinc layer.

This produces excellent protection against corrosion.Material include G300-Z275,DX51-Z275,DX52-Z275 etc.,

Our manufacturing facilities occupy over 5000 square meters.

PRODUCTS.

At the moment we can offer various sizes of timber connector,wooden connector,joist hangers,joist strap,joist connector,timber plate,

post support,truss tie,nail plate,mounting plates, mounting angles etc.,

Our excellent technical capabilities and many years of experience allow us to produce products according to individual needs.

Our experienced metal specialists will be happy to answer all your questions and offer the best technical solution.

QUALITY.

The company regularly holds employee training. It also annually invests into the development of production and product quality.

Due to the growing customer needs and in order to maintain the high quality of products this year we acquired a powerful steel

slitting line. This will increase productivity and will allow us to offer our customers the most necessary products at an

attractive price.And we have ISO9001-2001 certification.

Our future plans are not only to remain one of the leading connectors manufacturing company, but also in the run of the next

three years, to increase our turnover by several times. In order to achieve the objectives the equipment will be updated,

modern equipment will be purchased and the customers will be offered new products.
